An inference perspective on LLM architecture and why memory bandwidth
is the inference bottleneck.
8 min read
By now it has propagated to the mainstream mind that LLMs are
essentially "just" next token prediction machines. Context
in, first token predicted, second token predicted, repeat until the
end of white-collar work is achieved.
Most explanations of how LLMs work however, only cover the training
part. 3Blue1Brown will tell you all about backpropagation with
animations worthy of a Pixar movie, but the training-perspective
drowns out the part where the prompt goes in and tokens come out.
The forward pass.
Inference.
Furthermore, the inference perspective is frankly better suited for
explaining LLM architecture than the training one. And yet I have
not found any good explanations of that perspective so … here
we are.
In this essay/blog/whatever, I will attempt to convey an intuitive
sense of what each part of the LLM does when predicting the next
token. You'll understand why memory bandwidth is the actual
bottleneck at inference and if things go well, you'll close this tab
thinking: that wasn't so complicated after all.
The Full Picture. In Brief.
Enough preamble. Let's predict the next token.
Say, this is our example interaction:
|
User
How many r's are in strawberry?
LLM
The number of r's is
<user_start>How many r's are in strawberry?<user_end><model_start>The number of r's is
The goal now is to predict the next token. Probably a number.
Hopefully "three," because if not, the screenshot will show
up on your X feed in about 20 minutes.
Now, if you have read anything about LLMs before (or if you have
scrolled LinkedIn recently and still have your sanity) you might know
that each token has an embedding. The short explanation is: An
embedding is a vector of numbers, capturing the meaning of a token,
where similar tokens live closer together in vector space.
The textbook example uses two dimensions because humans can't
visualize more than three, and can barely manage three. In reality
these vectors have thousands of dimensions, which is less intuitive
but considerably more useful.
The embedding of " is" in GPT-3 might be (yes the space is
included):
is=
Each token in the interaction above has such an embedding of size
12,288. The goal now is to get from those floating point numbers to
a probability distribution over the next token.
The way we will get there is this: take the embedding of the last
token (" is") and pass it through a sequence of layers,
each adding information without changing the vector's size. Some of
those layers gather context from previous tokens; others process the
current vector in isolation. Either way, we come out the other side
with a vector still of size 12,288, which we'll project back into
vocabulary space. Out comes a probability distribution. The token
with the highest probability wins (usually).
I get that starting out with the last token's embedding seems weird,
but LLMs house so many layers that the output vector bears about as
much resemblance to its starting point as today's Elon does to the
Elon of 2014.
So if we simplify that process one more time, at the risk of
becoming reductionist: map the last token to embedding space, do
some very expensive linear algebra which sometimes involves the
previous tokens, but always keeps the vector at the same size, and
map it back to tokenland to get a probability distribution over the
next token. If the final resulting vector is somewhere between
"three" and "3" we might predict (30%
" three", 25% " 3", 10% " two" ...).
Two Steps. Repeat Until Sentient.
Here is the dirty secret of the transformer architecture: there are
basically two things happening, and then they happen again and again
and again. GPT-3 has 96 blocks. Each one does the same two things:
Neural Network and Attention.

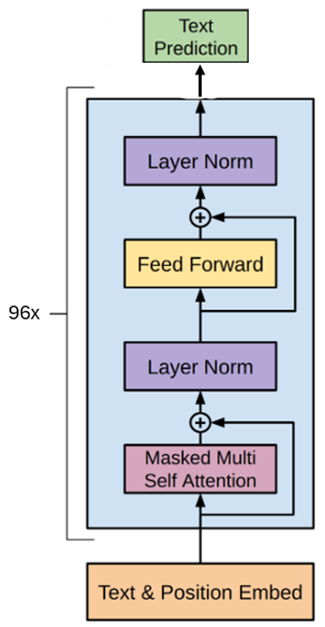

Note: It's called "Text & Position Embed" because in
practice a position embedding is added to the token embeddings.
Between the embedding and unembedding steps, GPT-3 runs the same
four operations over and over again. Two of those steps are
normalization: for every number in your 12,288-dimensional vector,
we pretty much just subtract the mean and divide by the standard
deviation of all the numbers. The "Feed forward" step is just a regular
two layer neural network, mapping a 12,288 vector to a 49,152
(=4*12,288) vector and back to 12,288 dimensions. That leaves the attention step, the only place in the
architecture where tokens actually talk to each other, and the part
we shall focus on here.
Our 12,288-dimensional embedding of " is" (we'll call
"input vector") enters Multi-Head Attention, which runs 96
attention heads in parallel. All of these heads receive our input
vector. 96 attention heads in each multi-head attention layer, of
which we have 96, makes for 96 × 96 = 9,216 heads in total.
These heads are a large part of the reason why your Claude Code
subscription now makes up a substantial part of your monthly
expenses. But before we get lost in a debate about whether AI is
net-cheaper than developers and how badly we need to get off the AI
wagon hurtling toward doom, let's rather skip the doomerism and zoom
in on what such an attention head actually does. The process looks
like this:
Query
Which nouns are in the previous tokens?
KeyValue
<user_start>SpecialUser text starts...
HowQuestionAsks method...
manyQuantityQuantifier...
rLetterLetter to count...
'sSuffixPlural marker...
areVerbQuestion verb...
inPrep.Inside relation...
strawberryNoun
I'm a strawberry, that fruit thingy
?Punct.Question ends...
<user_end>SpecialUser text ends...
<model_start>SpecialModel text starts...
TheArticlePoints to noun...
numberNoun
I'm a number, like a county thing
ofPrep.Links count target...
rLetterLetter being counted...
'sSuffixPlural marker...
isVerbAnswer setup...
We derive a query from our input vector and all tokens can
"attend" to that query with their keys.
In the example above "Subject" attends to the query
"Are any of you guys subjects?". If a key of a given
previous token matches our query, we add its value information to
our input vector. For example, the information that a
"number"(meaning a specific quantity of something) was
just mentioned is added.
Queries, keys, and values are all 128-dimensional vectors, entirely
determined by the previous tokens themselves and the model parameters
living in our current attention head. If a query and key point in a
similar direction, we do some computation on the value vector (128
doesn't go into 12,288) and then add it to the input vector.
The more similar the direction, the more is added.
(Saying "key of a previous token" is a bit of a
simplification as the deeper the layer, the more each key and value
reflects the entire context rather than any single token. I'll
call it "key of a previous token" because "a key
vector that originated from token X but has since accumulated
further information from every token that came before it" would
undermine the very understanding it's trying to convey, so
I'm keeping the lie)
Attention is simple
Now, the full attention mechanism works as follows:
Calculate the query, key and value vector from
our input vector
Fetch the keys and values from all previous
tokens
Compare each key against our query
The more a key matches the query, the more of its
value information is added to our input vector
All of this collapses into one formula, from Vaswani et al. 2017,
the paper that introduced this whole kind of architecture.
You've seen this equation. It was on that one slide your
professor marked "non-examinable".
is our query
vector, are the
key vectors, is
128 (the head dimension), and
are our value
vectors.
The softmax part returns a vector, which sums up to 1 and
encapsulates how much each of the keys correspond to the query.
Concretely:
Query
Are any of you guys part of the prompt?
KeySoftmaxValue
<user_start>Prompt0.1The user prompt begins here.
HowPrompt0.1The user is asking for a method or count.
manyPrompt0.1The user wants a numeric answer.
rPrompt0.1The letter to count is r.
'sPrompt0.1This marks the counted letter as plural.
arePrompt0.1This turns the prompt into a question.
inPrompt0.1The count should happen inside the next word.
strawberryPrompt0.1The word to inspect is strawberry.
?Prompt0.1The user question ends here.
<user_end>Prompt0.1The user prompt ends here.
<model_start>Model output0.0Model text starts...
TheModel output0.0Answer begins...
numberModel output0.0Quantity being stated...
ofModel output0.0Links count target...
rModel output0.0Restates counted letter...
'sModel output0.0Plural marker...
isModel output0.0Answer setup...
In this case here, the value vectors of the prompt are weighed
highly and, after mapping the output of the formula above to 12,288
dimensions, the aggregated information of the value vectors of this
head will be added to the input vector.
All 96 heads result in their own query and contribute their tweak to
the input vector. Out the other side comes a vector still of size
12,288, enriched with context from the previous tokens. It then
passes through two normalizations and one neural network step,
before entering the attention stage again in the next block with
different queries, different keys, and different values.
All of this requires those key and value vectors to be accessible.
The process of storing and fetching key and value vectors is called
KV-caching. Fetching from memory is much more efficient than
recalculating them every time. The problem is how many numbers there
are to fetch. What I described above was one head in one multi-head
attention layer. GPT-3 has 96 blocks, each with 96 heads running in
parallel, each demanding the key and value vectors of every previous
token in the context. Multiply that out if you like. Or skip to the
next section, which has already done it for you.
So why is memory bandwidth the bottleneck?
A single H100 (the GPU behind most LLM deployments) stores 80GB of
data in High-Bandwidth Memory (HBM). The actual compute units,
however, can only do math on data loaded into SRAM, which holds a
maximum of 117MB. At some point, the key and value vectors must be
loaded from HBM to SRAM. The speed of that transition (called
"memory bandwidth") in an H100 is about 3.35 terabytes per
second.
This might sound like a lot, but let's do the numbers for GPT-3 and
then extrapolate to larger models.
GPT-3 has 96 transformer blocks, each with 96 attention heads. The
maximum number of previous tokens on which an LLM can base its
next-token prediction is called the context window. To predict the
next token at full context, we need to fetch 2 × 96 × 96
× context_size key and value vectors (key and value vectors for
all previous tokens for all heads).
With GPT-3's context window of 2,048 tokens and a head dimension of
128, that's 2 × 96 × 96 × 2,048 × 128
≈ 4.8 billion numbers. In FP16 that's 9.6 gigabytes of data
fetched to predict a single token! Considering that context windows
are now 100× larger and models have additionally grown in
size, you can see that memory bandwidth becomes the bottleneck
quicker than you can say "Spare me AI overlords".
As you can see, the KV-cache scales linearly with context length.
Compute grows too, but memory bandwidth usually hurts first: more
context means more KV-cache data to fetch.
We could compare the H100 to a Ferrari on the autobahn and the KV
cache to a traffic jam. However, I'm just as sick of bad AI
metaphors as you are, and most of them are misleading anyway. So I'd
rather just save your time and end this essay right here.
One more thing. Remember to clear your context windows.
I finetuned Qwen3-32B/14B/4B on a set of WhatsApp messaging data to reproduce my texting style.
3 min read
Context
Me
Viel Spaß heute :)
Them
Dankee Sind jetzt im größten Club der City ☺️
Responses
Actual Julius Reference
Oha wild, wie isses?
Qwen3 32B Finetuned
Aww nicee Bin schon gespannt auf deinen Report
Qwen3 14B Finetuned
Jaa nicee
Qwen3 4B Finetuned
Jaa Und?
Qwen3 32B Base Prompted
Juhu! Hoffe, es läuft gut!
Qwen3 32B Base
Das klingt ja mega! ✨ Im größten Club der Insel – ab ins Rampenlicht, ihr seid die Stars des Abends!
Looking at the Qwen3 32B reply ("Aww nicee / Bin schon gespannt auf deinen Report"), it already captures multiple of my specific writing patterns, such as:
Repeating letters at the end of words
Mixing German and English
Dropping pronouns (using "Bin schon" instead of "Ich bin schon")
Overview
There are two main ways to get a model to adapt to a specific writing style:
System Instructions
Finetuning
System instructions are great because they are model-independent, cheap, and easy to implement.
They do, however, limit the style specifications to general guidelines and lose power as the desired style becomes more fine-grained and situation-dependent. This detailed level of style modification is where we get to use finetuning instead.
Finetuning's main advantage is that it allows small models, which have a harder time generalizing from system instructions anyways, to adopt a highly specific style.
I finetuned Qwen3-32B/14B/4B and compared these replies against the 32B base model, the base model with a system prompt about my specific style, and my actual responses to get a feel for how these approaches compare.
Data
180k tokens worth of my replies + context were extracted, parsed, redacted, and cleaned from WhatsApp messages sent after 2023, with the consent of the chat partner.
Training
I rented an Nvidia L4 and A100 80GB and used QLoRA with 4-bit quantization.
Basically, the original model remains frozen in 4-bit precision while only smaller adapter weight matrices are trained and added to the actual model matrices. This enables finetuning on less powerful GPUs with less memory.
Evaluation
For evaluation, I held out 103 items, each consisting of a few back-and-forth messages and the actual message I sent next. The model's task was to predict this message.
To evaluate this, I ranked all the responses (including my actual message) by how much they sounded like me. First place means it sounded a lot like me (or was my actual message), while sixth place means it sounded the least like me.
Here are the results:
Approach
Average ranking
Comment
Actual Julius
1.70
advantaged because of out of context information
Qwen3 32B
2.93
Qwen3 14B
3.01
Qwen3 4B
3.48
nonsense answers oftentimes
Prompted Baseline
4.02
generic
Qwen3 32B Base
5.86
Assistant-like
I only finetuned the unprompted model. Combining prompting and finetuning could improve performance further.
Examples
Context
Them
There you go
Me
Ahh vielen Dank. Sehr nice 👍
Them
Dann siehts eher schlecht aus haha. Muss es wohl bezahlt werden 😣
Ranked responses
1.
Actual Julius Reference
😂 😂 Glaube ist auch ohne extra cash erschwingbar
2.
Qwen3 32B Finetuned
Jaa, hab nochmal nachgeschaut Da gibt es aber ne kleine Chance dass ich das bis Montag schaffe Aber wenn nicht dann müssen wirs bezahlen
3.
Qwen3 14B Finetuned
🤔
4.
Qwen3 4B Finetuned
🤔
5.
Prompted Baseline
Jap, scheint so. Naja, zahlen halt. Irgendwie. 🤔
6.
Qwen3 32B Base
Kein Problem, gerne gesehen! 😄 Wenn's um so viel Geld geht – hoffentlich ist's was, wofür's sich lohnt! Oder zumindest was man irgendwann wieder zurückbekommt... ✌️ 😄
The base model notably gives very generic assistant-like answers
Context
Me
Du bist aber auch ne Nachteule, oder?
Them
Nein hahaha eigentlich nicht Ich passe mich nur den Begebenheiten an
Ranked responses
1.
Actual Julius Reference
Jaja Lauras schuld
2.
Qwen3 32B Finetuned
Was machst du denn so nachts?
3.
Qwen3 4B Finetuned
Jaa Aber du bist ja so nachttypisch Und die Party war krass Was machst du jetzt
4.
Qwen3 14B Finetuned
Aber wie? Sind ja keine so große Partyleute
5.
Prompted Baseline
Haha, klar, die berühmte Ausrede Schlaf gut!
6.
Qwen3 32B Base
Ach, verstehe! Also eine „Gelegenheitsnachteule“ Dann viel Erfolg beim Anpassen – und vielleicht wird’s irgendwann zur Gewohnheit Gute Nacht nochmal, bis morgen! ✨
Messages that mention information not present in the context often give away the actual Julius message.
Context
Them
4:00 brooooo 😭 😭 😭
Ranked responses
1.
Actual Julius Reference
💀
2.
Qwen3 4B Finetuned
Haha, dass is ja bisschen wild
3.
Qwen3 14B Finetuned
Haha ja
4.
Qwen3 32B v2 Finetuned
Haha was is los?
5.
Prompted Baseline
was ist los? 🥺
6.
Qwen3 32B Base
Hey, 4 AM is a rough time to be feeling down. What’s going on? If you want to talk about it, I’m here. Sometimes just getting things out can help lighten the load. If not, know that it’s okay to feel this way—everyone has moments like this. You’re not alone.
